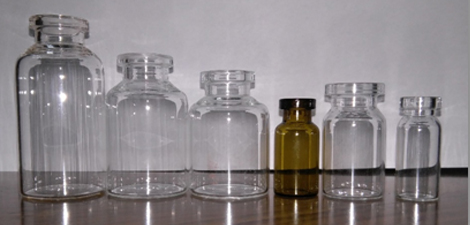

Tubular Vials

Tubular Vials

  • Complete range as per the ISO8362-1 standard
  • Custom- made design as per customer’s request
  • Bottom optimization for lyophilization process
  • Crimp neck and screw neck finishes
  • Insulin vails
  • Narrow dimenstional accuracy monitored by on-line camera inspection
  • Optional cosmetic flaws inspection with high-level camera system
  • Hydrolytic Resistance compliant with Pharmacopoeias to minimize interaction between the drug and the vial
  • Tubular Vials are formed from Glass Tubing hence the name Tubular.
  • Tubular Vials are used for multidose injections as well as host of other packaging applications.
  • The neck shape can be Penicillin type or Screw type as per the customers’ requirement.
  • Glass tubing used are USP Type 1 Neutral Borosilicate.
  • Tubular Vials can also be Ceramic Printed.
  • Tubular Vials can be designed and manufactured as per customers’ specifications.
  • We have latest state-of-the-art computerized camera based optical scanning machine which checks for all critical dimensions and accepts or rejects the product.

Color : Flint, Amber

Sizes : 1 ml to 20 ml

Best Optometrist



Best Optometrist

ISO range

Reference Nominal Capacity Brimful Capacity Diameter Thickness Height Standard Neck-finish
  (ml) (ml) (mm) (mm) (mm)
2R 3.4 4 16 1 35 13
4R 4.8 6 16 1 45 13
6R 8.3 10 22 1 40 20
8R 9.8 11 22 1 45 20
10R 11.5 13.5 24 1 45 20
15R 17.5 19 24 1 60 20
20R 21.5 25 30 1.2 55 20
25R 27 30 30 1.2 65 20
30R 33 36 30 1.2 75 20
50R 49 58 40 1.5 73 20
100R 75 116 47 1.7 100 20

SCREW NECK

  VIALS
VALUME (ml) OUTSIDE (ml) NECK(mm) PACKAGING
5 18 14(*2.5) Bulk
7.5 22 18(*3.0) Bulk
10 24 18(*3.0) Bulk
15 24 18(*3.0) Bulk
20 30 22(*3.0) Bulk
25 30 22(*3.0) Bulk
25 30 22(*3.0) Bulk
